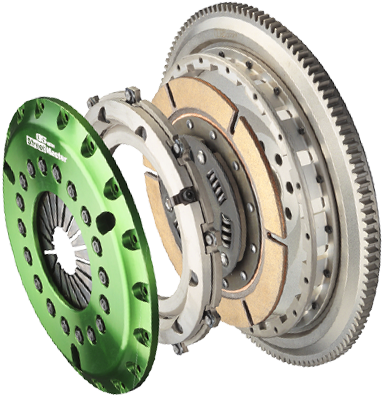

OS Giken Street Master hard single-plate clutch kit (GT1CD) for Mazda RX-7 FD3S 13B-REW
OS Giken Street Master hard single-plate clutch kit (GT1CD) for Mazda RX-7 FD3S 13B-REW
SKU: OSGIKEN-GT1CD-FD3SCouldn't load pickup availability
OS Giken Street Master hard single-plate clutch kit (GT1CD) for the Mazda RX-7 FD3S with the 13B-REW engine. Strong torque capacity when driven hard, with pedal feel and engagement close to the standard clutch in everyday driving.
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Mazda | RX-7 | FD3S | 13B-REW |
Specifications
| OS Giken series code | GT1CD |
|---|---|
| Product line | Street Master hard single-plate clutch |
| Type | Street Master hard |
| Number of plates | Single plate |
| Disc diameter | 215 mm |
| Clutch disc | Clutch disc with damper |
| Made by | OS Giken, Japan |
| Reference | GT1CD-FD3S |
Fitting notes
Comes with dedicated clutch operation conversion parts. RX-7 (FD3S): balance weight [N3Y2-11-52X] and 6 mounting bolts [8051-27-236] required. Remove the cup and spring inside the clutch master cylinder (see the instruction manual). If they are left in, the clutch may not disengage properly or may slip. For the R3A clutch, cut the head of the weight bolt down to 7.3 to 7.5 mm before use. The clutch cover may touch the gearbox casing. If it does, remove the interfering material, but keep this to the minimum needed, as removing too much will greatly reduce rigidity.
Images are for illustration only. The actual product may differ.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
