OS Giken Super Lock 4 LSD SPEC-X 1.1, 1.5 or 2-way for Toyota Hiace 4WD 200 series 1KD/2KD/1TR/2TR
OS Giken Super Lock 4 LSD SPEC-X 1.1, 1.5 or 2-way for Toyota Hiace 4WD 200 series 1KD/2KD/1TR/2TR
SKU: OSGIKEN-OS-SUPER-LOCK-4-SPEC-X-200SYSTEMCouldn't load pickup availability

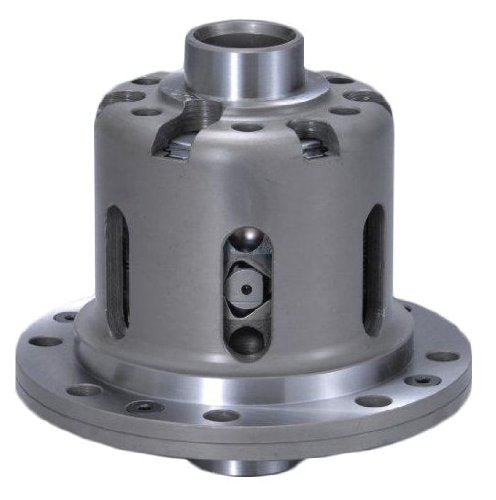

OS Giken Super Lock 4 LSD SPEC-X 1.1, 1.5 or 2-way for the Toyota Hiace 4WD 200 series with the 1KD/2KD/1TR/2TR engine. SPEC-X is made in 1.1-way, 1.5-way and 2-way versions, so contact us to confirm the version you need before ordering.
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Toyota | Hiace 4WD | 200 series | 1KD/2KD/1TR/2TR | Aug 2004 on |
Specifications
| Product line | Super Lock 4 LSD |
|---|---|
| Specification | SPEC-X 1.1, 1.5 or 2-way |
| Made by | OS Giken, Japan |
| Reference | OS-SUPER-LOCK-4-SPEC-X-200SYSTEM |
Fitting notes
Hiace type 6 models released after May 2020 need the side bearings replaced, genuine part number 90366-50007 x 2. Note: OS Super Lock 4 is a torque-sensing LSD. If one wheel is completely off the ground and you press the accelerator, the differential may not lock. In that case, apply the handbrake or footbrake to keep the differential locked, then open the throttle gently.
Images are for illustration only. The actual product may differ.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
