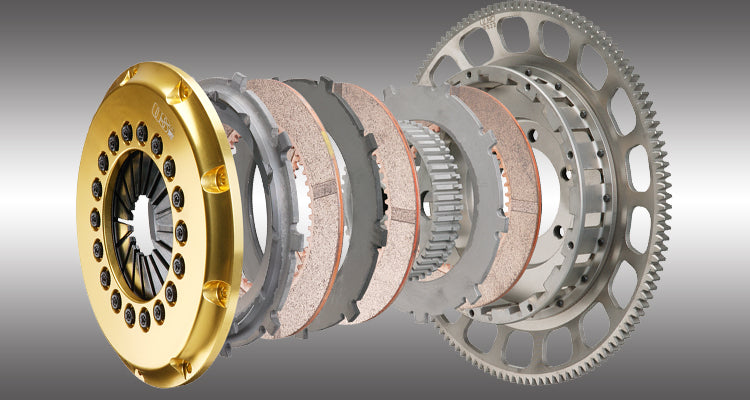

OS Giken R triple-plate clutch kit (R3C) for Mazda RX-7 FC3S 13BT
OS Giken R triple-plate clutch kit (R3C) for Mazda RX-7 FC3S 13BT
SKU: OSGIKEN-R3C-FC3SCouldn't load pickup availability
OS Giken R triple-plate clutch kit (R3C) for the Mazda RX-7 FC3S with the 13BT engine. Metal discs with a centre hub, used at the top level of drag (0-400 m), drift, time attack and circuit racing.
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Mazda | RX-7 | FC3S | 13BT |
Specifications
| OS Giken series code | R3C |
|---|---|
| Product line | R triple-plate clutch |
| Number of plates | Triple plate |
| Disc diameter | 215 mm |
| Clutch cover | Aluminium cover, centre hub type |
| Made by | OS Giken, Japan |
| Reference | R3C-FC3S |
Fitting notes
Use the optional sleeve bearing with front cover (sold separately) or the reinforced version. Check if your car is pre-facelift or facelift. RX-7 (FC3S) pre-facelift: balance weight [N327-11-521A] and 6 mounting bolts [8051-27-236] required. RX-7 (FC3S) facelift: balance weight [N3Y2-11-52X] and 6 mounting bolts [8051-27-236] required.
Images are for illustration only. The actual product may differ.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
