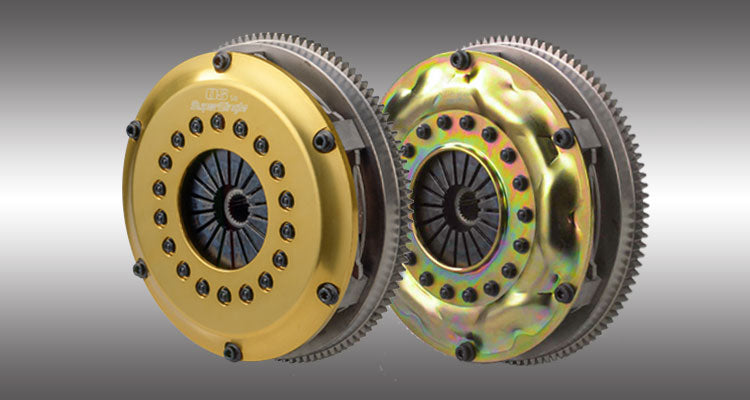

OS Giken Super Single pressed-cover clutch kit (SP) for Mazda RX-7 FD3S 13B-REW
OS Giken Super Single pressed-cover clutch kit (SP) for Mazda RX-7 FD3S 13B-REW
SKU: OSGIKEN-SP-PRESS-FD3SCouldn't load pickup availability
OS Giken Super Single pressed-cover clutch kit (SP) for the Mazda RX-7 FD3S with the 13B-REW engine.
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Mazda | RX-7 | FD3S | 13B-REW |
Specifications
| OS Giken series code | SP |
|---|---|
| Product line | Super Single pressed-cover clutch |
| Clutch cover | Pressed steel cover |
| Disc diameter | 225 mm |
| Made by | OS Giken, Japan |
| Reference | SP-PRESS-FD3S |
Fitting notes
Comes with clutch operation conversion parts. The sleeve bearing is not included in overhaul kits A and B. Requires balance weight [N3Y2-11-52X] and 6 mounting bolts [8051-27-236]. Remove the cup and spring inside the clutch master cylinder (see the instruction manual). If they are left in, the clutch may not disengage properly or may slip. For the R3A clutch, cut the head of the weight bolt down to 7.3 to 7.5 mm before use. The clutch cover may touch the gearbox casing. If it does, remove the interfering material, but keep this to the minimum needed, as removing too much will greatly reduce rigidity.
Images are for illustration only. The actual product may differ.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
