OS Giken

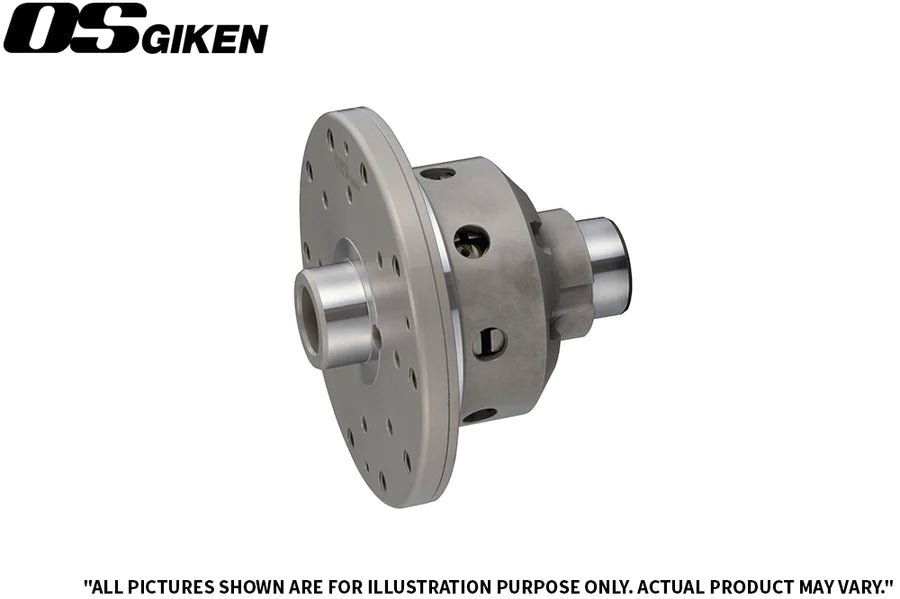

OS Giken Super Lock LSD with 4.4 final drive for Honda NSX NA2 C32
OS Giken Super Lock LSD with 4.4 final drive for Honda NSX NA2 C32
SKU: HA111-HA2Regular price
£3,396.80
Regular price
Sale price
£3,396.80
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
A Super Lock limited slip differential for the Honda NSX NA2 with the C32 engine, supplied with a 4.4 final drive gear. It has 25/38 ramp angles, 336 lock timing, 24 plates and 10S preload.
- All components chemically heat treated
- Components made from high-grade steel alloy
- Raw-forged gears
- Case machined from a single billet
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Honda | NSX (Acura NSX in the US) | NA2 | C32 |
In the box
- Super Lock LSD
- 4.4 final drive gear
Specifications
| Ramp angles | 25/38 |
|---|---|
| Lock timing | 336 |
| Total plates | 24 |
| Preload | 10S |
| Final drive | 4.4 |
| Made by | OS Giken, Japan |
| OS Giken part number | HA111-HA2 |
Fitting notes
- Fit as per the manufacturer's service manual.
- Initial torque can be adjusted with thicker or thinner cone springs.
- TCD-spec discs can be fitted for extra oil cooling and smoother operation.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
