OS Giken Super Lock LSD for Honda Integra Type R DC2 and Civic Type R EK9
OS Giken Super Lock LSD for Honda Integra Type R DC2 and Civic Type R EK9
SKU: HA052-HARegular price
£1,515.80
Regular price
Sale price
£1,515.80
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

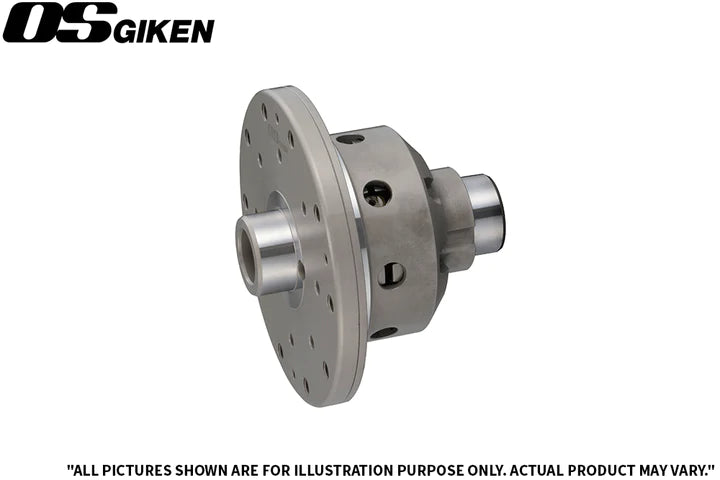

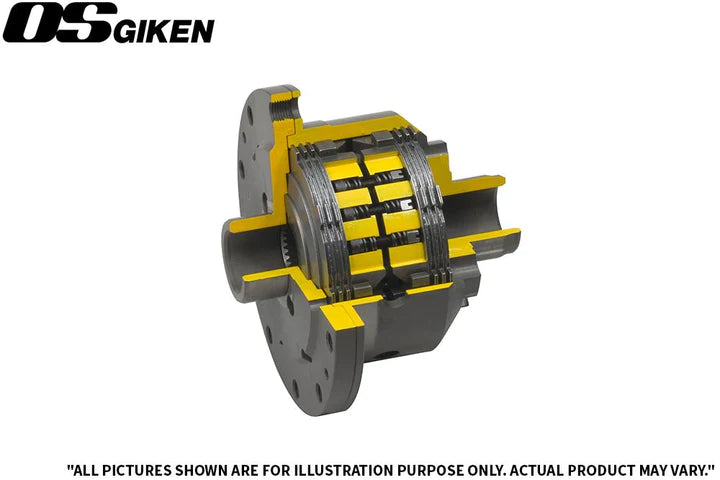

A Super Lock limited slip differential for the Honda Integra Type R DC2, the Integra DC2 (Acura Integra GSR) and the Civic Type R EK9, for the 117 mm ID ring gear only. It has 3/50 ramp angles, 10 plates and 6S preload.
- All components chemically heat treated
- Components made from high-grade steel alloy
- Raw-forged gears
- Case machined from a single billet
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Honda | Integra Type R (Acura Integra Type R in the US; 117 mm ID ring gear only) | DC2 | B18C | |
| Honda | Integra (Acura Integra GSR in the US; 117 mm ID ring gear only) | DC2 | B18C | |
| Honda | Civic Type R (117 mm ID ring gear only) | EK9 | B16B |
Specifications
| Ramp angles | 3/50 |
|---|---|
| Lock timing | 336 |
| Total plates | 10 |
| Preload | 6S |
| Ring gear inner diameter | 117 mm |
| Made by | OS Giken, Japan |
| OS Giken part number | HA052-HA |
Fitting notes
- Fit as per the manufacturer's service manual.
- Initial torque can be adjusted with thicker or thinner cone springs.
- TCD-spec discs can be fitted for extra oil cooling and smoother operation.
- For the 117 mm ID ring gear only.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
