OS Giken Super Lock LSD for Toyota Yaris 1.5 RS 1NZ
OS Giken Super Lock LSD for Toyota Yaris 1.5 RS 1NZ
SKU: TY261-HARegular price
£1,515.80
Regular price
Sale price
£1,515.80
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

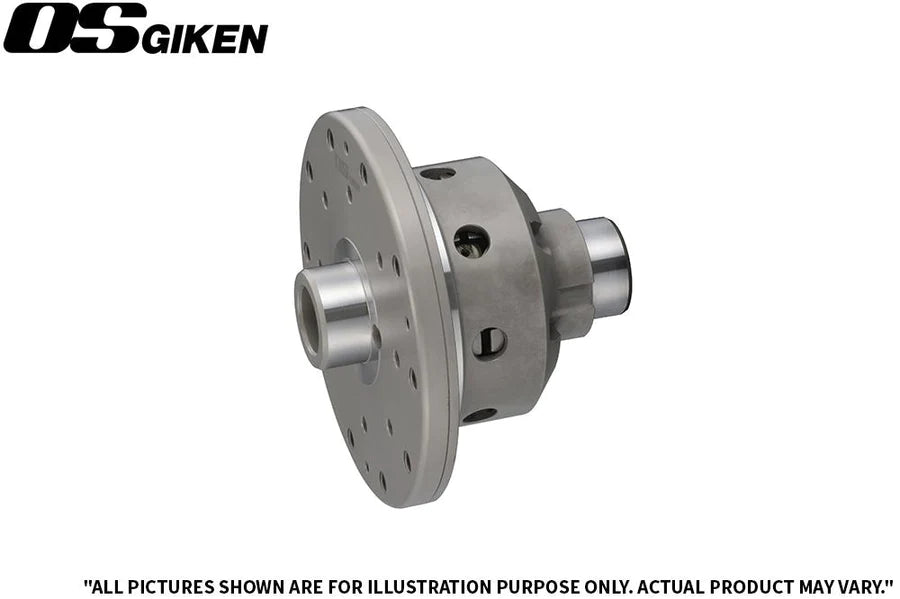

A Super Lock limited slip differential for the Toyota Yaris 1.5 RS with the 1NZ engine, sold as the Vitz in Japan. It has 3/55 ramp angles, 224 lock timing, 8 plates and 6S preload.
- All components chemically heat treated
- Components made from high-grade steel alloy
- Raw-forged gears
- Case machined from a single billet
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Toyota | Yaris (1.5 RS; Vitz in Japan) | 1NZ |
Specifications
| Ramp angles | 3/55 |
|---|---|
| Lock timing | 224 |
| Total plates | 8 |
| Preload | 6S |
| Made by | OS Giken, Japan |
| OS Giken part number | TY261-HA |
Fitting notes
- Fit as per the manufacturer's service manual.
- Initial torque can be adjusted with thicker or thinner cone springs.
- TCD-spec discs can be fitted for extra oil cooling and smoother operation.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
