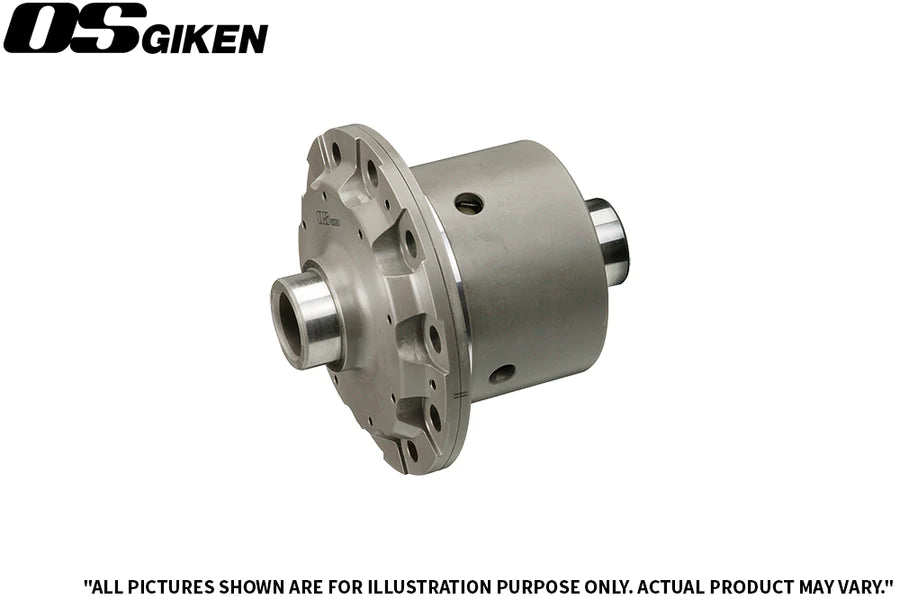

OS Giken Super Lock LSD, 220 mm ring gear for Toyota Supra JZA80 2JZGTE 6-speed manual
OS Giken Super Lock LSD, 220 mm ring gear for Toyota Supra JZA80 2JZGTE 6-speed manual
SKU: TY033-HARegular price
£1,588.40
Regular price
Sale price
£1,588.40
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
A Super Lock limited slip differential for the Toyota Supra JZA80 2JZGTE 6-speed manual with the 220 mm ring gear. It has 25/38 ramp angles, 336 lock timing, 28 plates and 12S preload.
- All components chemically heat treated
- Components made from high-grade steel alloy
- Raw-forged gears
- Case machined from a single billet
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Toyota | Supra (6-speed manual; 220 mm ring gear) | JZA80 | 2JZGTE |
Specifications
| Ramp angles | 25/38 |
|---|---|
| Lock timing | 336 |
| Total plates | 28 |
| Preload | 12S |
| Ring gear diameter | 220 mm |
| Made by | OS Giken, Japan |
| OS Giken part number | TY033-HA |
Fitting notes
- Fit as per the manufacturer's service manual.
- Initial torque can be adjusted with thicker or thinner cone springs.
- TCD-spec discs can be fitted for extra oil cooling and smoother operation.
- For the 220 mm ring gear diff. For the automatic with 200 mm ring gear, see TY031-HA.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
