OS Giken TCD LSD, B type for Mercedes-Benz 190E W201 and C220 W202
OS Giken TCD LSD, B type for Mercedes-Benz 190E W201 and C220 W202
SKU: MB032-HCRegular price
£3,292.30
Regular price
Sale price
£3,292.30
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

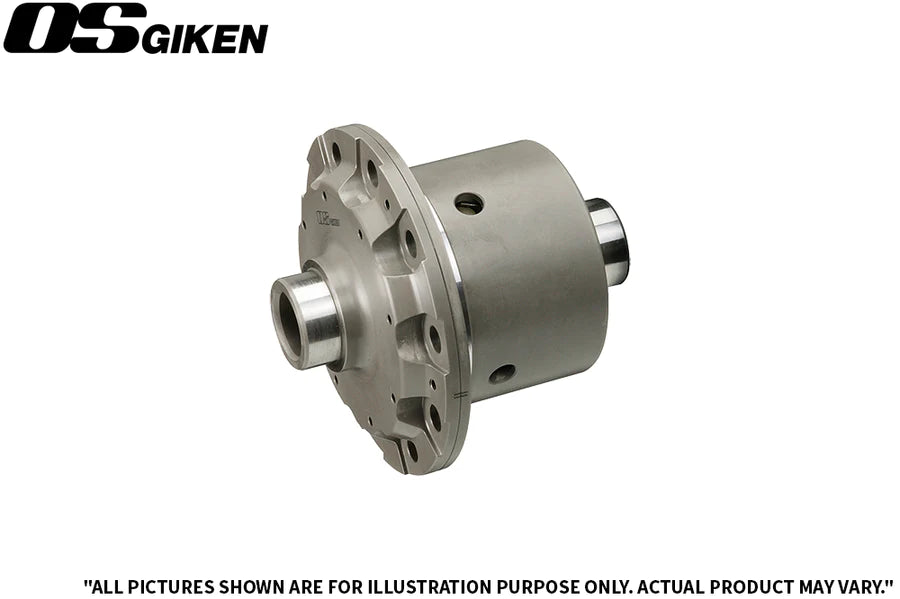

A TCD Super Lock limited slip differential for the Mercedes-Benz B type diff with the 116 mm ring gear, listed for the 190E 2.3 W201 and C220 W202. It does not suit the 2.65 final drive.
- All components chemically heat treated
- Components made from high-grade steel alloy
- Raw-forged gears
- Case machined from a single billet
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Mercedes-Benz | 190E (2.3 L; not possible with the 2.65 final drive) | W201 | ||
| Mercedes-Benz | C220 (2.2 L; not possible with the 2.65 final drive) | W202 |
Specifications
| Ramp angles | 25/38 |
|---|---|
| Lock timing | 336 |
| Total plates (TCD) | 16 |
| Preload | 10S |
| Ring gear type | 116 mm, 125.4 mm length |
| Made by | OS Giken, Japan |
| OS Giken part number | MB032-HC |
Fitting notes
- Fit as per the manufacturer's service manual.
- Initial torque can be adjusted with thicker or thinner cone springs.
- TCD-spec discs can be fitted for extra oil cooling and smoother operation.
- Not possible with the 2.65 final drive.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
