OS Giken
OS Giken TCD LSD, F type for Mercedes-Benz S350 W221
OS Giken TCD LSD, F type for Mercedes-Benz S350 W221
SKU: MB191-HCRegular price
£3,292.30
Regular price
Sale price
£3,292.30
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

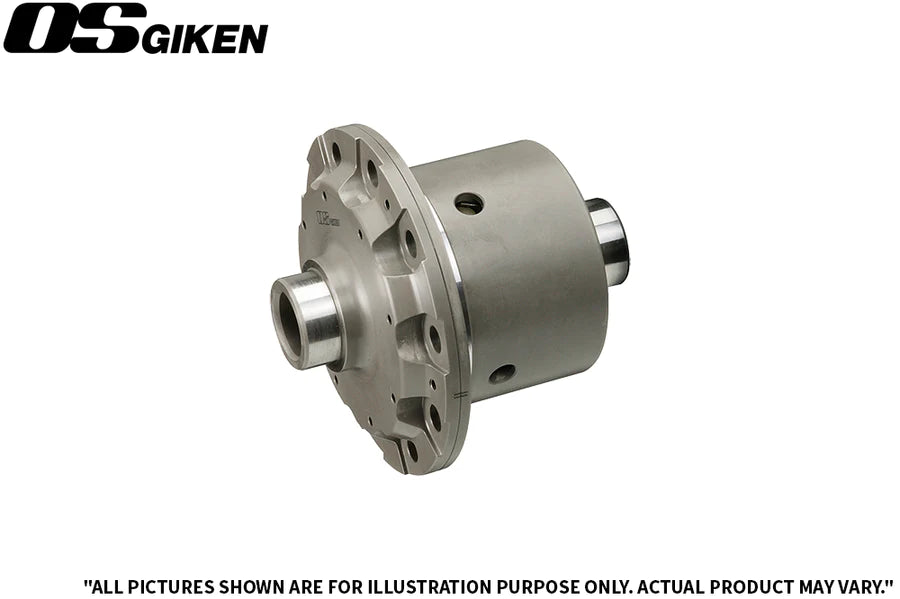

A TCD Super Lock limited slip differential for the Mercedes-Benz F type diff with the 123 mm ring gear, listed for the 2006 S350 W221 3.5 L with the 3.07 final drive. It has 20 TCD plates and 10S preload.
- All components chemically heat treated
- Components made from high-grade steel alloy
- Raw-forged gears
- Case machined from a single billet
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Mercedes-Benz | S350 (3.5 L, 2006 model with 3.07 final drive; 123 mm ring gear type, 142.7 mm length) | W221 |
Specifications
| Ramp angles | 25/35 |
|---|---|
| Lock timing | 448 |
| Total plates (TCD) | 20 |
| Preload | 10S |
| Ring gear type | 123 mm, 142.7 mm length |
| Made by | OS Giken, Japan |
| OS Giken part number | MB191-HC |
Fitting notes
- Fit as per the manufacturer's service manual.
- Initial torque can be adjusted with thicker or thinner cone springs.
- TCD-spec discs can be fitted for extra oil cooling and smoother operation.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
