OS Giken R twin-plate clutch overhaul kit A, GM 26T spline (R2CD) for Mazda RX-7 FC3S, FD3S and RX-8
OS Giken R twin-plate clutch overhaul kit A, GM 26T spline (R2CD) for Mazda RX-7 FC3S, FD3S and RX-8
SKU: MZ101-BH60ARegular price
£909.70
Regular price
Sale price
£909.70
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Overhaul kit A for the R2CD twin-plate clutch with GM 26T spline hub on the Mazda RX-7 FC3S and FD3S and the RX-8. The clutch is rated to about 1193 Nm (880 lb ft).
- Floating dampened centre hub absorbs transmission shock
- Built for high-power competition cars such as drift and drag
- Designed to cope with high heat loads
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Mazda | RX-7 (GM 26T spline hub) | FC3S | ||
| Mazda | RX-7 (GM 26T spline hub) | FD3S | ||
| Mazda | RX-8 (GM 26T spline hub) |
Specifications
| OS Giken series code | R2CD |
|---|---|
| Number of plates | Twin |
| Disc type | Dampened |
| Torque capacity | about 1193 Nm (880 lb ft) |
| Hub spline | GM 26T |
| Made by | OS Giken, Japan |
| OS Giken part number | MZ101-BH60A |
Fitting notes
- FC3S and FD3S require N351-11-521 and six bolts 8051-27-236.
- RX-8 requires the original counterweight N3Z2-11-52X and six bolts 8051-27-325/236.
- FC3S and RX-8 require MZ101-RSA0K.
- FD3S requires MZ121-ALT.
- Follow the OS Giken installation guide.
- Reuse or renew the original pilot bearing or bush.

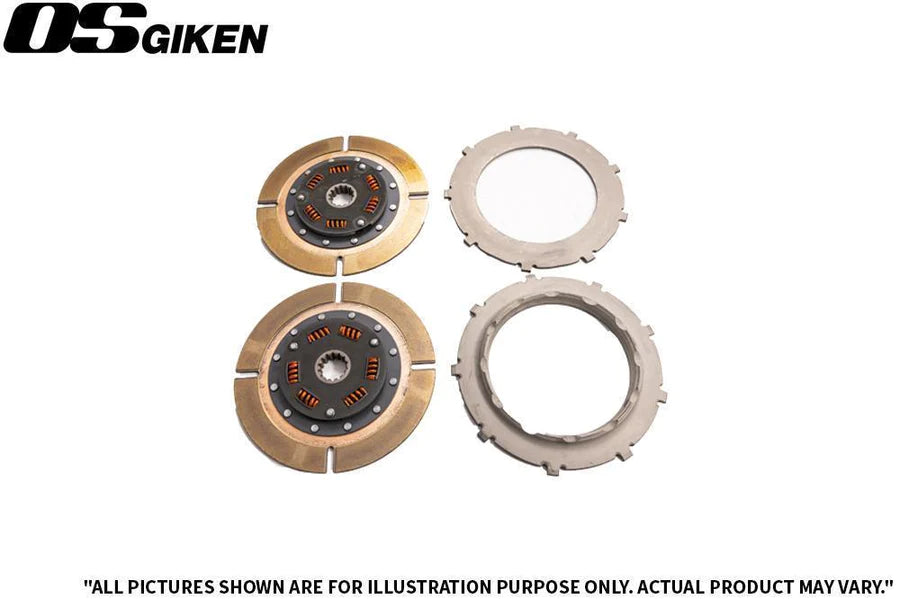

- Overhaul kits are for rebuilding an OS Giken clutch you already have. Overhaul kit A: clutch discs and pressure plate. Overhaul kit B: clutch discs, pressure plate and clutch cover.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
