OS Giken R triple-plate clutch kit (R3C) for Toyota Supra 7MGTE W58
OS Giken R triple-plate clutch kit (R3C) for Toyota Supra 7MGTE W58
SKU: TY011-CH5Regular price
£2,215.40
Regular price
Sale price
£2,215.40
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

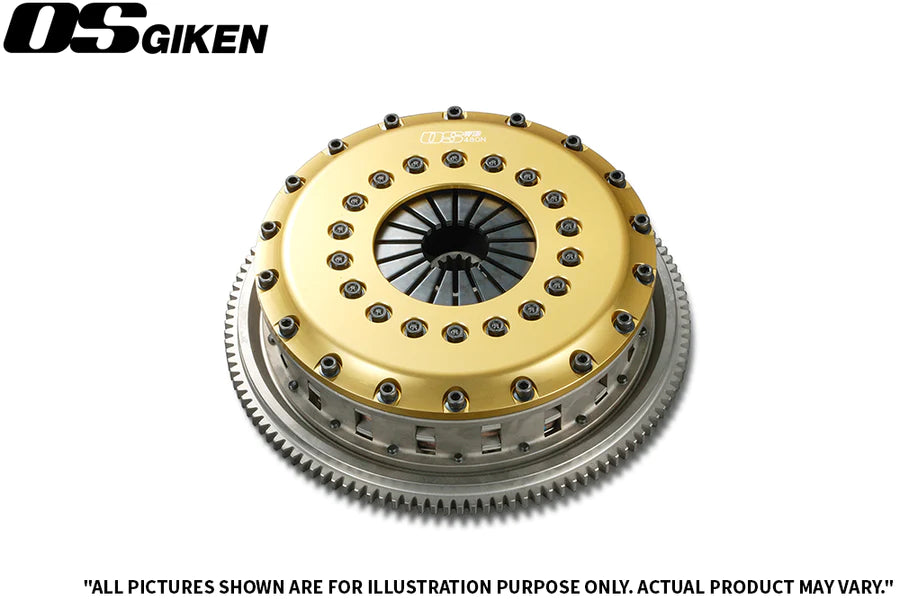

An R3C triple-plate clutch kit with flywheel for the Toyota Supra 7MGTE with the W58 gearbox, 21 spline, which also works with the R154. It is rated to about 1491 Nm (1100 lb ft).
- Floating dampened centre hub absorbs transmission shock
- Built for high-power competition cars such as drift and drag
- Designed to cope with high heat loads
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Toyota | Supra (W58 gearbox, 21 spline; also works with the R154 gearbox) | 7MGTE |
In the box
- Triple-plate clutch assembly with flywheel
Specifications
| OS Giken series code | R3C |
|---|---|
| Number of plates | Triple |
| Disc type | Dampened |
| Torque capacity | about 1491 Nm (1100 lb ft) |
| Hub spline | 21 |
| Made by | OS Giken, Japan |
| OS Giken part number | TY011-CH5 |
Fitting notes
- Requires TY011-CH50M.
- A custom hydraulic concentric slave cylinder is recommended.
- Follow the OS Giken installation guide.
- Reuse or renew the original pilot bearing or bush.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
