OS Giken TR twin-plate clutch overhaul kit A (TR2C) for Mazda RX-7 FC3S and RX-8
OS Giken TR twin-plate clutch overhaul kit A (TR2C) for Mazda RX-7 FC3S and RX-8
SKU: MZ101-BF50ARegular price
£805.20
Regular price
Sale price
£805.20
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

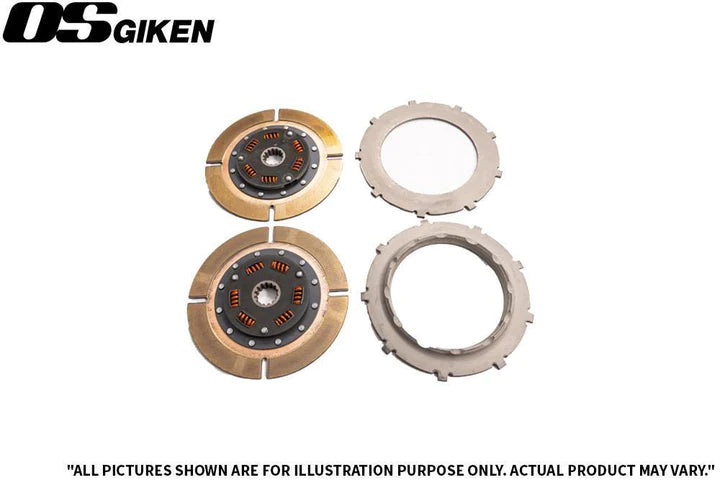

Overhaul kit A for the OS Giken TR2C twin-plate clutch on the Mazda RX-7 FC3S and the RX-8. The TR2C is rated to about 1152 Nm (850 lb ft).
- Billet aluminium cover for a more direct pedal feel
- Aluminium cover allows higher clamping force
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Mazda | RX-7 | FC3S | ||
| Mazda | RX-8 |
Specifications
| OS Giken series code | TR2C |
|---|---|
| Number of plates | Twin |
| Disc type | Solid hub |
| Disc diameter | 215 mm |
| Torque capacity | about 1152 Nm (850 lb ft) |
| Clutch cover | Billet aluminium |
| Made by | OS Giken, Japan |
| OS Giken part number | MZ101-BF50A |
Fitting notes
- FC3S and FD3S require N351-11-521 and 6 bolts (8051-27-236).
- RX-8 requires the original counterweight N3Z2-11-52X and 6 bolts (8051-27-325/236).
- Follow the OS Giken installation guide.
- Reuse or renew the original pilot bearing or bush.
- Overhaul kits are for rebuilding an OS Giken clutch you already have. Overhaul kit A: clutch discs and pressure plate. Overhaul kit B: clutch discs, pressure plate and clutch cover.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
