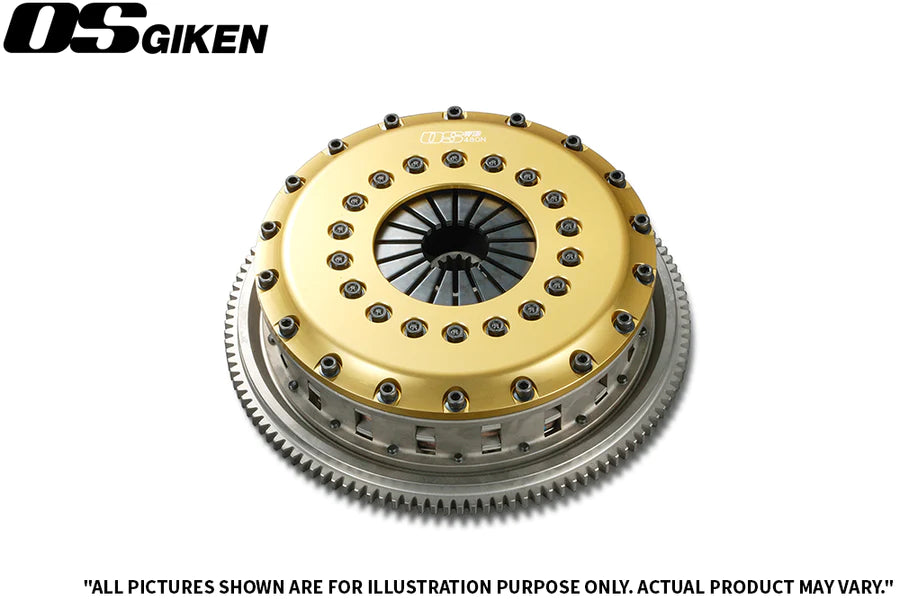

[TR3B] - TR Triple Plate Clutch for Chevrolet C5 Corvette - Overhaul Kit A

[TR3B] - TR Triple Plate Clutch for Chevrolet C5 Corvette - Overhaul Kit A

£1,112.00
£1,112.00
Sale Sold out
Tax included.

The TR Clutch series line-up was designed for vehicles which have substantial increases in engine power. The billet aluminum cover provides a more direct clutch pedal feel, but still maintains ease of engagement due to the unique leverage mechanism of the diaphragm spring to reduce overall pedal effort.

The TR3B was designed with Naturally Aspirated engines in mind. This is the lightest triple disc clutch/flywheel assembly you'll find for most applications. The clutch discs are 204mm in size and is good up to about 700lbs ft for NA/supercharged motors. The aluminum cover allows for higher clamping force (increased capacity) and will handle the hard abuse often found at the track.

Fitment:

  • Chevrolet Corvette (C5)

Included Components:

  • Triple Plate Clutch Assembly with Lighten Flywheel
  • OS Giken Release Sleeve Assembly

Installation Notes:

  • Please consult installation guide
  • Requires OEM Pilot Bearing or Bushing

Overhaul Kits are meant for the repair and refurbishment of an OS Giken clutch kit. Overhaul kits are not universal fitment and must be specifically order for each particular model of OS Giken clutch.



Overhaul Kit A - Includes the follow parts:

  1. Replacement Clutch Friction Disc(s)
  2. Replacement Pressure Plate (not the Aluminum or Steel Cover)

Overhaul Kit B - Includes the follow parts:

  1. Replacement Clutch Friction Disc(s)
  2. Replacement Pressure Plate
  3. Replacement Clutch Cover (Aluminum/Steel) *Covers are not interchangable*
CLUTCH COVER
Our specially designed clutch cover contains a unique leverage mechanism for the diaphragm spring, resulting in a higher clamping load of the clutch disc(s) while also reducing pedal effort. These diaphragm springs combined with our special OS Giken Release Sleeves provide a much easier to operate clutch.

DISCS
We utilize full face metallic clutch plates to achieve high torque capacity from our clutches. This allows for us to use much softer diaphragm springs to achieve equal or better torque capacity compared to our competitors with substantially less pedal effort.

CLUTCH HOUSING
Integrated ventilation holes reduce heat generated inside the clutch system and allows for friction plate dust to exit outside the clutch system, thus increasing reliability and safety. Both the clutch housing and flywheel are chemically heat treated to handle extreme conditions. Increased power output typically requires more torque capacity(friction) in order to hold. This often leads to more heat being generated



FLYWHEEL
Our hardened steel alloy flywheels provide superior durability and life than aluminum flywheels, which also results in quicker and predictable engine response. We develop our own flywheel design to maximize our design and engineering philosophies into a no-compromise, complete clutch assembly.
Our integrated clutch and flywheel packages increase transmission efficiency and engine response. Our clutches and flywheels are built within strict tolerances and crafted using carefully selected materials to provide the highest quality and durability.
