OS Giken
OS Giken TR triple-plate clutch kit (TR3B) for Chevrolet Corvette C6
OS Giken TR triple-plate clutch kit (TR3B) for Chevrolet Corvette C6
SKU: CH053-CF3Regular price
£2,560.80
Regular price
Sale price
£2,560.80
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

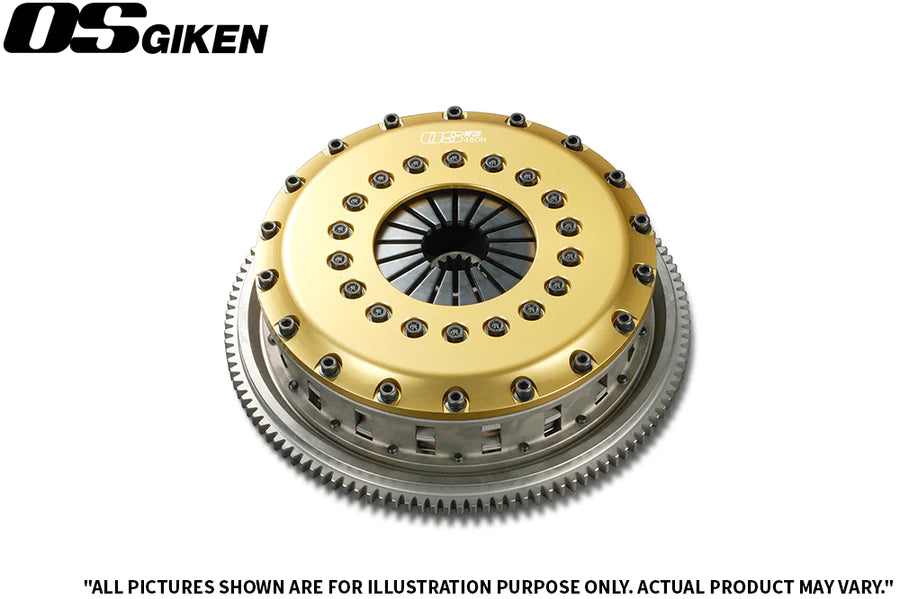

OS Giken TR3B triple-plate clutch kit for the Chevrolet Corvette C6. It uses 204 mm discs, comes with a lightened flywheel and is rated to about 949 Nm (700 lb ft) on naturally aspirated or supercharged engines.
- Billet aluminium cover for a more direct pedal feel
- Diaphragm spring leverage design keeps pedal effort down
- Designed for naturally aspirated engines, with a low-weight triple-plate clutch and flywheel assembly
- Aluminium cover allows a higher clamp load for track use
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Chevrolet | Corvette | C6 |
In the box
- Triple-plate clutch assembly with lightened flywheel
- OS Giken release sleeve assembly
Specifications
| OS Giken series code | TR3B |
|---|---|
| Number of plates | Triple |
| Disc diameter | 204 mm |
| Cover | Billet aluminium |
| Torque capacity | about 949 Nm (700 lb ft) on naturally aspirated or supercharged engines |
| Made by | OS Giken, Japan |
| OS Giken part number | CH053-CF3 |
Fitting notes
- Follow the OS Giken installation guide.
- Reuse or renew the original pilot bearing or bush.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
