OS Giken
OS Giken TR triple-plate clutch overhaul kit B (TR3B) for Chevrolet Camaro Gen5 LS3
OS Giken TR triple-plate clutch overhaul kit B (TR3B) for Chevrolet Camaro Gen5 LS3
SKU: CH061-CF30BRegular price
£1,525.70
Regular price
Sale price
£1,525.70
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

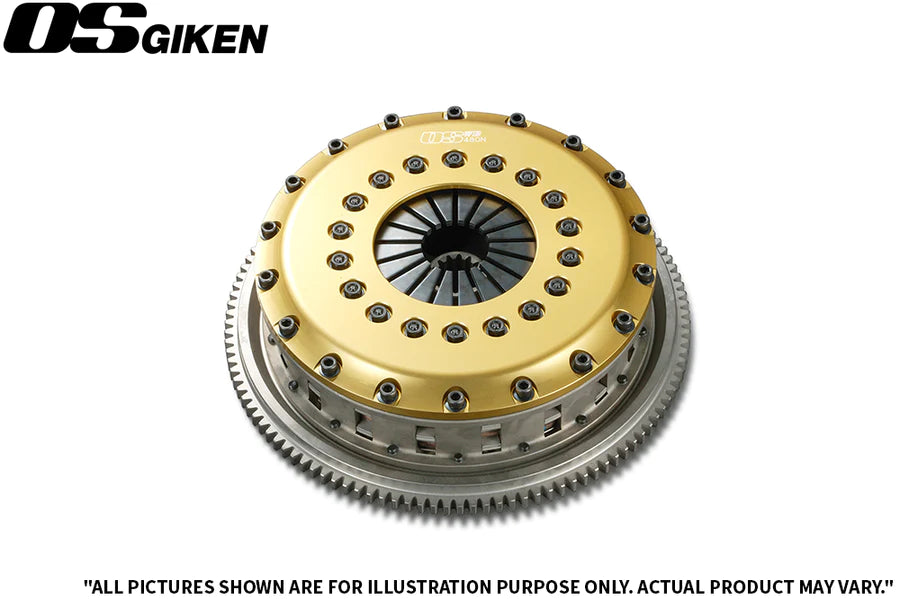

Overhaul kit B for the OS Giken TR3B triple-plate clutch on the Chevrolet Camaro Gen5 with the LS3 engine. It contains the clutch discs, pressure plate and clutch cover.
- Billet aluminium cover gives a more direct pedal feel.
- Aluminium cover allows higher clamping force for more capacity.
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Chevrolet | Camaro (Fifth generation (Gen5)) | LS3 |
In the box
- Clutch discs
- Pressure plate
- Clutch cover
Specifications
| OS Giken series code | TR3B |
|---|---|
| Number of plates | Triple |
| Disc diameter | 204 mm |
| Torque capacity | about 949 Nm (700 lb ft), naturally aspirated or supercharged |
| Made by | OS Giken, Japan |
| OS Giken part number | CH061-CF30B |
Fitting notes
- Follow the OS Giken installation guide.
- Reuse or renew the original pilot bearing or bush.
- Overhaul kits are for rebuilding an OS Giken clutch you already have. Overhaul kit A: clutch discs and pressure plate. Overhaul kit B: clutch discs, pressure plate and clutch cover.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
