OS Giken TS twin-plate clutch kit (TS2A) for Mazda RX-7 FC3S, FD3S and RX-8
OS Giken TS twin-plate clutch kit (TS2A) for Mazda RX-7 FC3S, FD3S and RX-8
SKU: MZ101-BC1Regular price
£1,474.00
Regular price
Sale price
£1,474.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

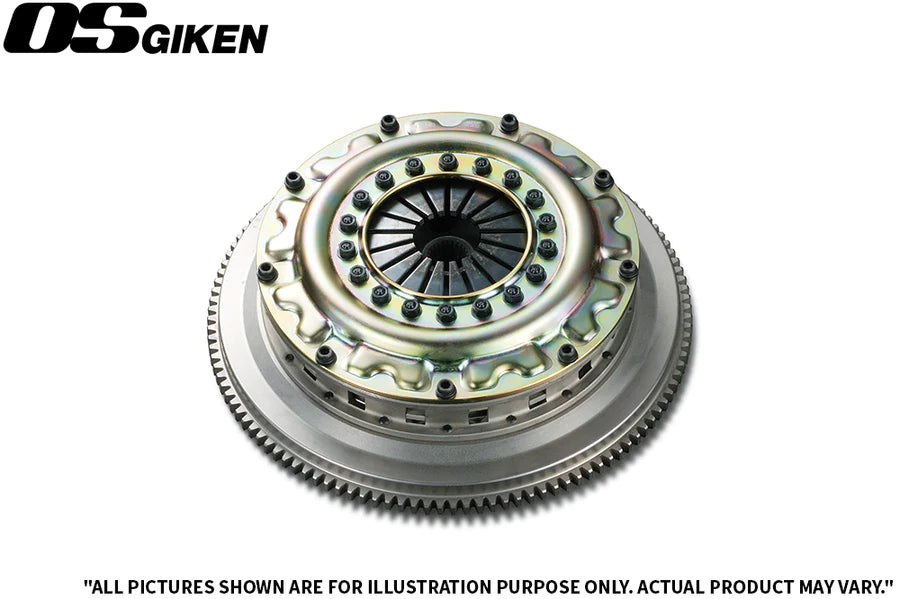

A TS2A twin-plate clutch kit with flywheel and release sleeve for the Mazda RX-7 FC3S and FD3S and the RX-8. It uses 184 mm discs and is rated to about 542 Nm (400 lb ft).
- Designed for naturally aspirated and supercharged engines
- Stamped steel cover for moderate pedal effort
- Heat-treated alloy clutch discs
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Mazda | RX-7 | FC3S | ||
| Mazda | RX-7 | FD3S | ||
| Mazda | RX-8 |
In the box
- Twin-plate clutch assembly with flywheel
- OS release sleeve assembly
Specifications
| OS Giken series code | TS2A |
|---|---|
| Number of plates | Twin |
| Disc diameter | 184 mm |
| Torque capacity | about 542 Nm (400 lb ft) |
| Cover | Stamped steel |
| Made by | OS Giken, Japan |
| OS Giken part number | MZ101-BC1 |
Fitting notes
- FC3S and FD3S require N351-11-521 and six bolts 8051-27-236.
- RX-8 requires the original counterweight N3Z2-11-52X and six bolts 8051-27-325/236.
- FD3S requires MZ121-ALT.
- FC3S and RX-8 require MZ101-RSA0K.
- Follow the OS Giken installation guide.
- Reuse or renew the original pilot bearing or bush.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
