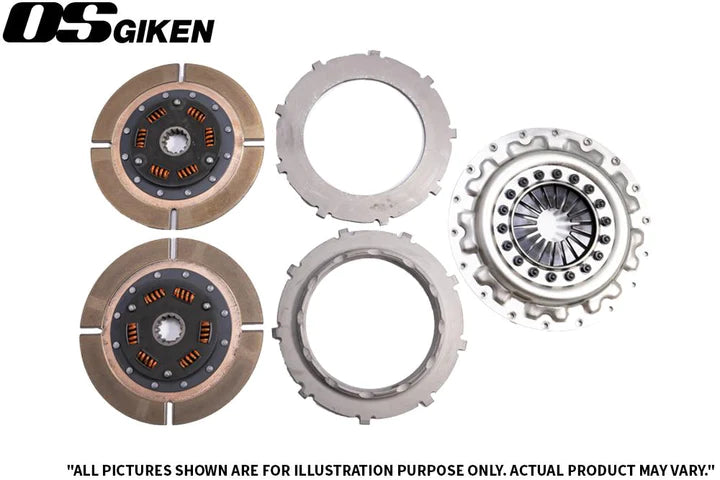

OS Giken TS twin-plate clutch overhaul kit B (TS2A) for Mazda RX-7 SA22C 12B

OS Giken TS twin-plate clutch overhaul kit B (TS2A) for Mazda RX-7 SA22C 12B

SKU: MZ132-BC10B
£856.90
£856.90
Sale Sold out
Taxes included. Shipping calculated at checkout.

Overhaul kit B for the OS Giken TS2A twin-plate clutch on the Mazda RX-7 SA22C with the 12B engine. The TS2A is rated to about 475 Nm (350 lb ft).

  • Designed for naturally aspirated and supercharged engines

Fitment

Make Model Chassis Engine Years
Mazda RX-7 SA22C 12B

Specifications

OS Giken series code TS2A
Number of plates Twin
Disc diameter 184 mm
Torque capacity about 475 Nm (350 lb ft)
Made by OS Giken, Japan
OS Giken part number MZ132-BC10B

Fitting notes

  • The SA22C requires the counterweight 883-11-751A and 6 bolts (8051-27-235).
  • Follow the OS Giken installation guide.
  • Reuse or renew the original pilot bearing or bush.
  • Reuse or renew the original release bearing assembly.
  • Overhaul kits are for rebuilding an OS Giken clutch you already have. Overhaul kit A: clutch discs and pressure plate. Overhaul kit B: clutch discs, pressure plate and clutch cover.

Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
