OS Giken TS twin-plate clutch kit with soft diaphragm spring (TS2BS) for Honda Integra Type R DC5 and Civic Type R EP3/FG2

OS Giken TS twin-plate clutch kit with soft diaphragm spring (TS2BS) for Honda Integra Type R DC5 and Civic Type R EP3/FG2

SKU: HA081-BE3
£1,546.60
£1,546.60
Sale Sold out
Taxes included. Shipping calculated at checkout.

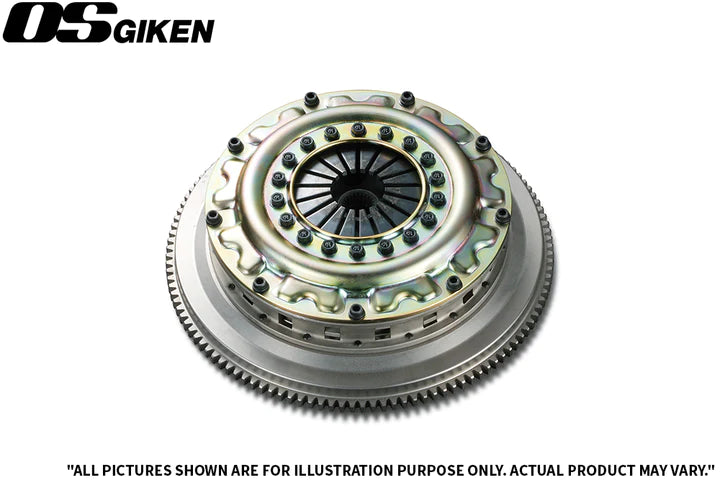

OS Giken TS2BS twin-plate clutch kit with flywheel and a soft diaphragm spring, for the Honda Integra Type R DC5 (K20A) and Civic Type R EP3. The 204 mm discs are rated to about 678 Nm (500 lb ft).

  • Softer diaphragm spring for a very light pedal, for cars well below the standard TS2B torque capacity.
  • Designed for supercharged and turbocharged engines.
  • Stamped steel cover gives easy engagement and copes with track use.

Fitment

Make Model Chassis Engine Years
Honda Integra Type R (Acura RSX in the US) DC5 K20A
Honda Civic Type R EP3/FG2 K20A/K24

In the box

  • Twin-plate clutch assembly with flywheel

Specifications

OS Giken series code TS2BS
Number of plates Twin
Disc diameter 204 mm
Cover Stamped steel
Diaphragm spring Soft
Torque capacity about 678 Nm (500 lb ft)
Made by OS Giken, Japan
OS Giken part number HA081-BE3

Fitting notes

  • Requires HA081-BE30K.
  • Follow the OS Giken installation guide.
  • Reuse or renew the original pilot bearing or bush.

Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
