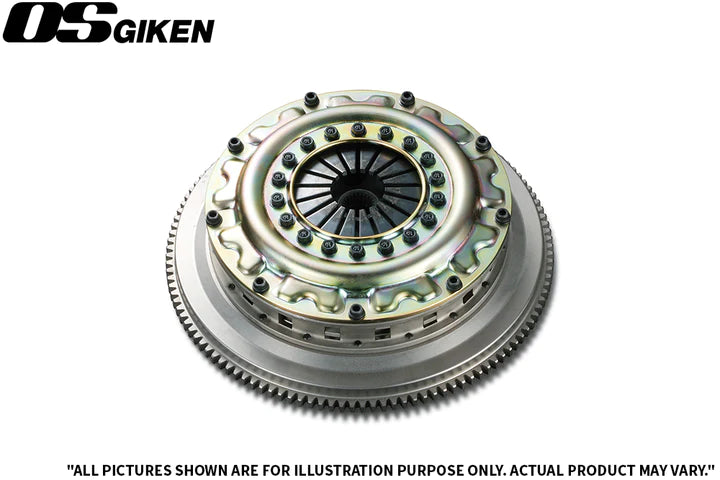

[TS2C] - TS Twin Plate Clutch Mazda RX-7 (All) RX-8 - Clutch Kit

[TS2C] - TS Twin Plate Clutch Mazda RX-7 (All) RX-8 - Clutch Kit

Regular price £1,530.00
Regular price Sale price £1,530.00
Sale Sold out
Tax included.

The STR Clutch line-up was designed to hold high capacity power while still retaining a relatively light clutch pedal. This technology was driven from our racer's demand for a lighter clutch during long endurance races in Japan. Heavy clutch pedals lead to driver fatigue during long endurance racing.

The TS2C was designed with high power Turbocharged engines in mind. This type of clutch caters toward the heavily modified engines. The solid hub clutch discs are 215mm in size and are good up to about 700lbs ft of torque reliably. The stamp steel cover allows for ease of engagement/disengagement and will handle the hard abuse found at the track.

Fitment:

  • Mazda RX-7 (FC3S)
  • Mazda RX-7 (FD3S)
  • Mazda RX-8

Included Components:

  • Twin Plate Clutch Assembly with Flywheel

Installation Notes:

  • FC3S/FD3S Requires (N351-11-521) & 6 BOLTS (8051-27-236)
  • RX8 Requires OEM Counterweight (N3Z2-11-52X) & 6 Bolts (8051-27-325/236)
  • FD3S Requires MZ121-ALT
  • FC3S/RX8 Requires MZ101-RSA0K
  • Please consult installation guide
  • Requires OEM Pilot Bearing or Bushing

Overhaul Kits are meant for the repair and refurbishment of an OS Giken clutch kit. Overhaul kits are not universal fitment and must be specifically order for each particular model of OS Giken clutch.



Overhaul Kit A - Includes the follow parts:

  1. Replacement Clutch Friction Disc(s)
  2. Replacement Pressure Plate (not the Aluminum or Steel Cover)

Overhaul Kit B - Includes the follow parts:

  1. Replacement Clutch Friction Disc(s)
  2. Replacement Pressure Plate
  3. Replacement Clutch Cover (Aluminum/Steel) *Covers are not interchangable*
CLUTCH COVER
Our specially designed clutch cover contains a unique leverage mechanism for the diaphragm spring, resulting in a higher clamping load of the clutch disc(s) while also reducing pedal effort. These diaphragm springs combined with our special OS Giken Release Sleeves provide a much easier to operate clutch.

DISCS
We utilize full face metallic clutch plates to achieve high torque capacity from our clutches. This allows for us to use much softer diaphragm springs to achieve equal or better torque capacity compared to our competitors with substantially less pedal effort.

CLUTCH HOUSING
Integrated ventilation holes reduce heat generated inside the clutch system and allows for friction plate dust to exit outside the clutch system, thus increasing reliability and safety. Both the clutch housing and flywheel are chemically heat treated to handle extreme conditions. Increased power output typically requires more torque capacity(friction) in order to hold. This often leads to more heat being generated



FLYWHEEL
Our hardened steel alloy flywheels provide superior durability and life than aluminum flywheels, which also results in quicker and predictable engine response. We develop our own flywheel design to maximize our design and engineering philosophies into a no-compromise, complete clutch assembly.
Our integrated clutch and flywheel packages increase transmission efficiency and engine response. Our clutches and flywheels are built within strict tolerances and crafted using carefully selected materials to provide the highest quality and durability.
