OS Giken
OS Giken TS twin-plate clutch overhaul kit B (TS2C) for Mazda RX-7 FC3S and FD3S, RX-8
OS Giken TS twin-plate clutch overhaul kit B (TS2C) for Mazda RX-7 FC3S and FD3S, RX-8
SKU: MZ101-BC50BRegular price
£1,128.60
Regular price
Sale price
£1,128.60
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Overhaul kit B for the OS Giken TS2C twin-plate clutch on the Mazda RX-7 FC3S and FD3S and the RX-8. The TS2C is rated to about 949 Nm (700 lb ft).
- Designed for high-power turbocharged engines
- Solid hub clutch discs
Fitment
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Mazda | RX-7 | FC3S | ||
| Mazda | RX-7 | FD3S | ||
| Mazda | RX-8 |
Specifications
| OS Giken series code | TS2C |
|---|---|
| Number of plates | Twin |
| Disc type | Solid hub |
| Disc diameter | 215 mm |
| Torque capacity | about 949 Nm (700 lb ft) |
| Made by | OS Giken, Japan |
| OS Giken part number | MZ101-BC50B |
Fitting notes
- FC3S and FD3S require N351-11-521 and 6 bolts (8051-27-236).
- RX-8 requires the original counterweight N3Z2-11-52X and 6 bolts (8051-27-325/236).
- FD3S requires MZ121-ALT.
- FC3S and RX-8 require release sleeve MZ101-RSA0K.
- Follow the OS Giken installation guide.
- Reuse or renew the original pilot bearing or bush.

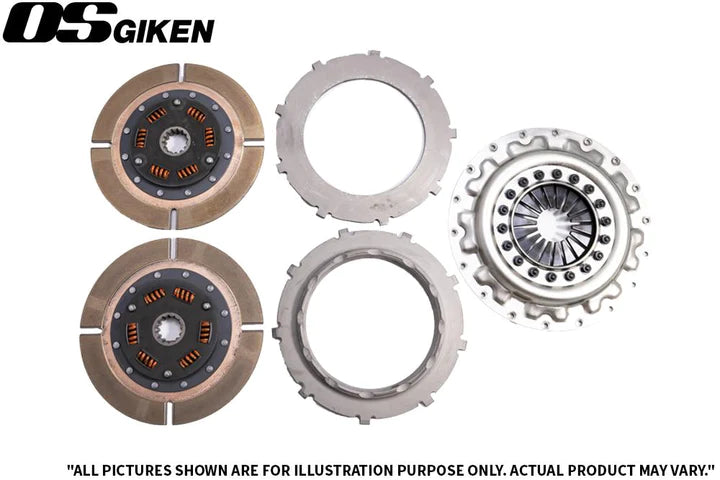

- Overhaul kits are for rebuilding an OS Giken clutch you already have. Overhaul kit A: clutch discs and pressure plate. Overhaul kit B: clutch discs, pressure plate and clutch cover.
Lead time: made to order by OS Giken in Japan, usually 2 to 3 weeks. Contact us if you need it sooner or want us to check fitment.
